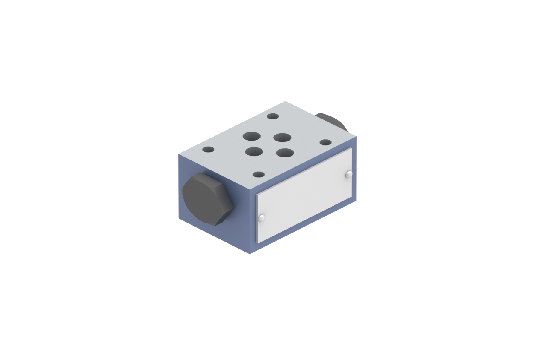

Pilot operated double check valve type Z2S10 serves to shut-off an oil flow in one direction and allow free flow in the opposite direction. They can also be opened in the direction of closure. These valves are mostly used :

*to relieve a working circuit under pressure

*to prevent a load from falling in the case of a line rapture

*to prevent creep movements of hydraulically stressed users.

These valves are generally fitted as an intermediate element between the control valve and the subplate. Sealing of interfaces is provided by o-rings, which are included. The valve can be installed in any position

Pilot operated double check valve type Z2S6 serves to shut−off an oil flow in one direction and allow free flow in the opposite direction. These valves are mostly used :

*to relieve a working circuit under pressure

*to prevent a load from falling in the case of a line rapture

*to prevent creep movements of hydraulically stressed users.

These valves are generally fitted as an intermediate element between the control valve and the subplate. The valve can be installed in any position.

Specs: up to 35 MPa , up to 60 dm/min
