Directional spool valves type WE6 & WE10… electrically operated are intended for change in direction of fluid flow in a hydraulic system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off. These directional spool valves are used for subplate mounting in any position in a hydraulic system.

The Valve comes in single and double coil 12v,24v,110v&220v

We range in all spools .

SPECS: up to 35 MPa, up to 80 dm /min

Directional spool valves type WE10… electrically operated are intended for change in direction of fluid flow in a hydraulic system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off. These directional spool valves are used for subplate mounting in any position in a hydraulic system.

The Valve comes in single and double coil 12v,24v,110v&220v

We range in all spools .

SPECS: up to 35 MPa, up to 160 dm /min

Directional spool valves type WEH16… electrohydraulically operated are intended for change in direction of fluid flow in a system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off. These directional spool valves are used for subplate mounting in any position in a hydraulic system. The directional spool valve type WEH16… is complied with the regulations of directive 2006/95/WE 2006/95/WE 2006/95/WE for the following voltages: •50 -250 V for AC •75 -250 V for DC

We range in all spools

Specs: Specs: Up to 350Mpa , Up to 240 dm /min

The Valve comes in single and double coil 12v,24v,110v&220v

Directional spool valves type WEH22… electrohydraulically operated are intended for change in direction of fluid flow in a system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off. These directional spool valves are used for subplate mounting in any position in a hydraulic system.

Specs: Up to 35Mpa, Up to 450 dm/min

The Valve comes in single and double coil 12v,24v,110v&220v

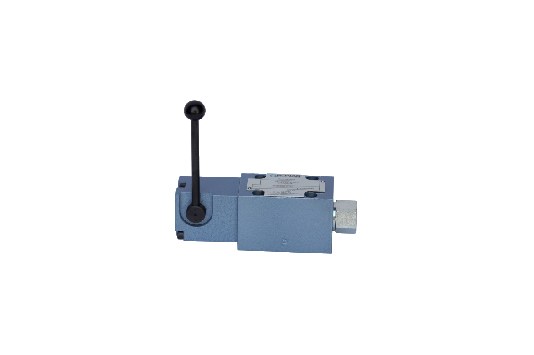

Directional spool valves are intended for change in direction of fluid flow in a hydraulic system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off

We range in all spools.

We range in spring & Detent Type

Specs: Up to 31,5Mpa , up to 80 dm/min

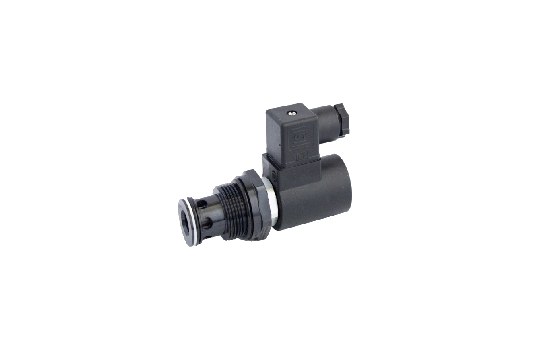

Directional cartridge valve type 2URES6… is intended for control direction of fluid flow, causing particular movement direction or stops a receiver (cylinder or hydraulic motor). The directional valve is mounted by screwing into a threaded cavity.

The product is compliant with the regulations of directive 2014/35/UE NS 6 |

pmax 25 MPa | qmax 40 dm3/min | WK 432 720

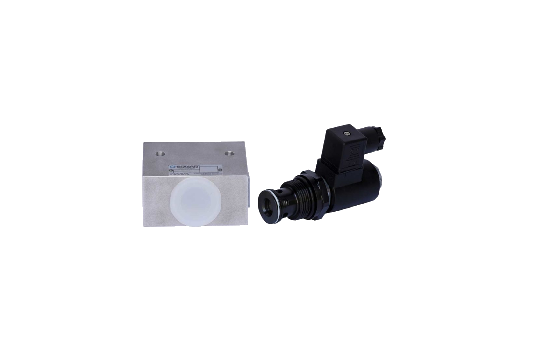

One-way direct acting double lock normally closed or normally opened poppet style solenoid cartridge valves

type 2 URES 10 are designed for application re-quiring extremely fast response times and virtually zero internal leakage
