HCD4 CONTROL VALVE
HCD 4 – 75ltr – Sectional Type
Max Flow capacity : 75lts
Max Working pressure : 350bar
Available in Sectional type.
Spool Type : Cylinder Spool & Motor Spool
Additional attachments : Detent type, Pneumatic Operated & Port Relief
HCD16 CONTROL VALVE
HCD16 Control Valve – Sectional Type
Flow capacity : 150 ltrs
Max Working pressure : 350bar
Max Spools : 12 lever
Spool Variants: Cylinder Spool & Motor Spool.
Additional Attachment available: Detent Spool , Pneumatic Operated & Port Relief.
M45 CONTROL VALVE
Flow capacity : 45 ltrs
Max Working pressure : 350bar
Max Spools : 6 lever
Spool Variants: Cylinder Spool & Motor Spool.
Additional Attachment available: Detent Spool.

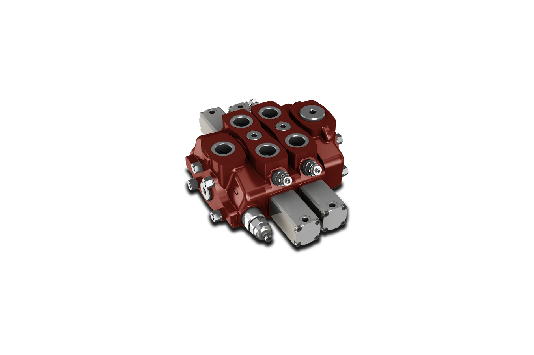

MONOBLOCK VALVES
Our Monoblock valves are capable of working with a minimum& maximum flow of 45 liters/min TO 250 liters/min an operating pressure of 350 bar. Numerous integrated valve features in addition to countless configuration options make our valve highly flexible and easily adaptable to the widest applications range.
The possibility to utilize wide variety of interchangeable spools circuit and different combinations between them, give an answer to every requirement.

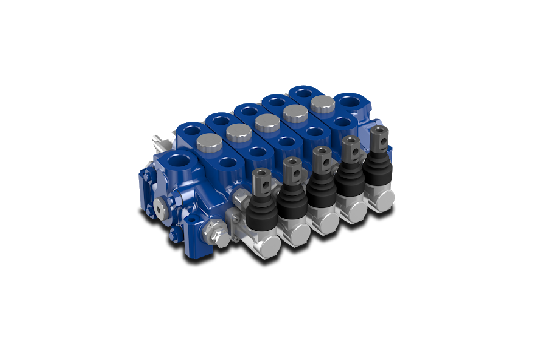

SECTIONAL VALVES
Our modular sectional valves are capable of working with a minimum& maximum flow of 45 liters/min TO 250 liters/min. at an operating pressure of 350 bar. Numerous integrated valves features in addition to countless configuration options make our sectional valve highly flexible and easily adaptable to interchangeable spools the possibility to make parallel, tandem and series circuit and different combinations between them give an answer to every requirement
