Use

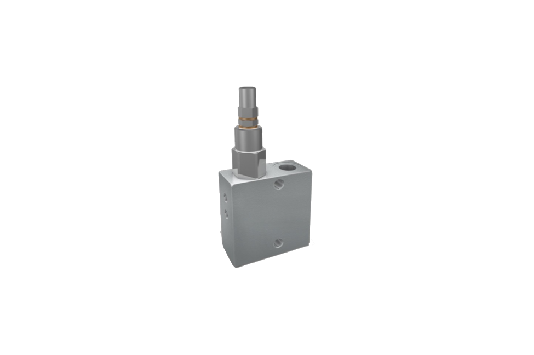

Valve mainly used to operate two cylinders in sequence: upon reaching a certain calibration value, the valve opens and feeds a second actuator. The check valve allows the free flow of the flow in the opposite direction. It is indicated in systems where the pressure on the secondary actuator is limited, as the pressures add up.

Mounting

For use with two actuators, follow the assembly instructions shown in the diagram. For other uses, fit the valve taking into consideration that, upon reaching the set pressure value, the flow goes from V to C, while from C to V it is free.

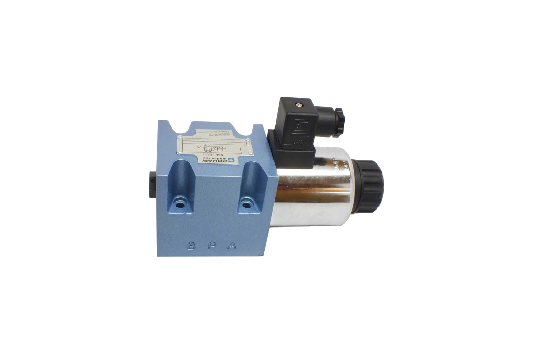

Directional spool valves type WE10… electrically operated are intended for change in direction of fluid flow in a hydraulic system and thus it allows to change direction of movement of a receiver – mostly piston rod of a cylinder or hydraulic motor as well to use functions: on and off. These directional spool valves are used for subplate mounting in any position in a hydraulic system.

The Valve comes in single and double coil 12v,24v,110v&220v

We range in all spools .

SPECS: up to 35 MPa, up to 160 dm /min
