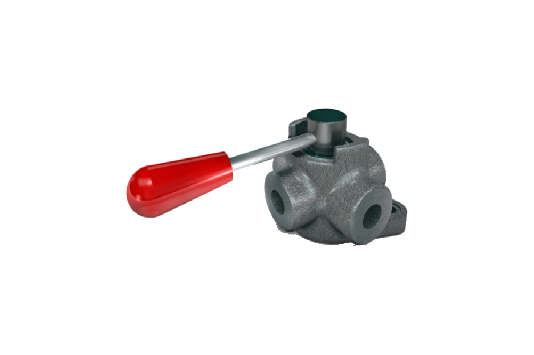

3-WAY FLOW DIVERTERS
Use
Valves used to divert the inlet flow to two outlet ports.
Mounting
Connect P to the power supply and ports A and P to the branches of the hydraulic circuit to which the flow is to be diverted. With lever in pos. 1 feeds the mouth A, with lever in pos. 2 feeds the mouth B. With the lever in the central position the ports P, A and B are all connected (open center).

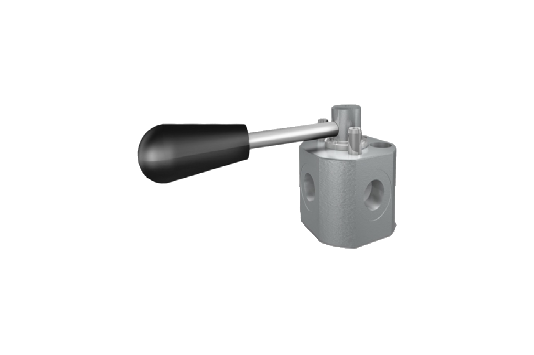

STEEL HIGH PRESSURE 3 WAY FLOW DIVERTER
Use
Valves used to divert the inlet flow to two outlet ports.
Mounting
Connect P to the power supply and ports A and P to the branches of the hydraulic circuit to which the flow is to be diverted. With lever in pos. 1 feeds the mouth A, with lever in pos. 2 feeds the mouth B. With the lever in the central position the ports P, A and B are all connected (open center).

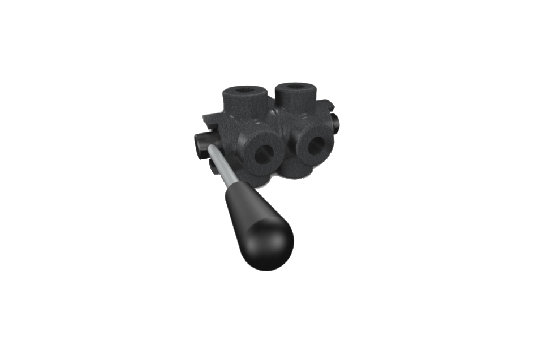

6-WAY FLOW DIVERTERS
Use
Valves formed by two coupled 3-way diverters: each of the two sections has the function of diverting the flow from a single supply to two outlets. The two sections are operated simultaneously using a single lever. They can be used to operate two actuators.
Mounting
Connect P and P ‘to the two power supplies, ports A and B to the first actuator and ports A’ and B ‘to the second actuator. With lever in pos. 1 P feeds A and P ‘feeds A’, with lever in pos. 2 P feeds B and P ‘feeds B’. With the lever in the central position the mouths of each section are connected to each other (open center).
