RETURN LINE FILTERS

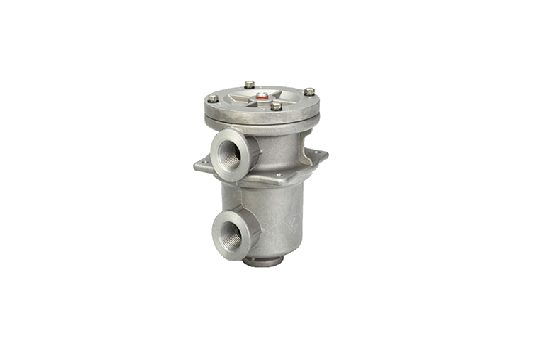

CFR

Direct tank or line mount
5 sizes – flows to 700 lpm
By pass standard 1 bar return / 0.35 bar suction
Aluminium diecast construction
Working pressure to 20 bar / test 30 bar / burst 40 bar
Can be used for return / suction lines
Max temp. To 80° c
Suitable for Mineral / Petroleum based oils

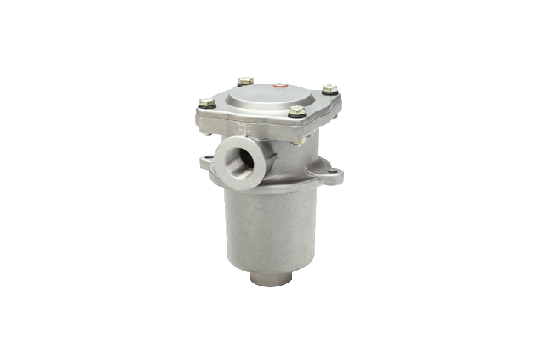

HFR

Aluminium die cast construction
3 basic models – flows to 150 lpm
By pass standard 1 bar
Working pressure to 20 bar / test 30 bar / burst 40 bar
Max temp. To 80° C
Suitable for Mineral / Petroleum based oils

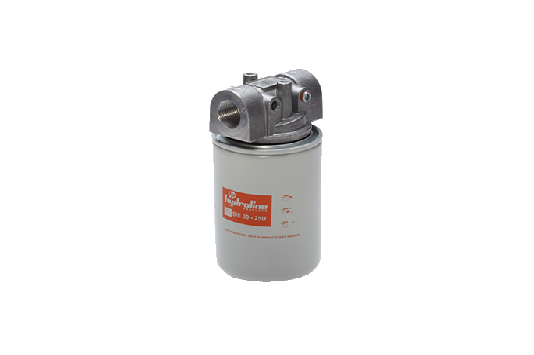

IFR2

Disposable spin on
Die cast Aluminium head
9 sizes flows to 400 lpm
Max. Pressure 10 bar / test 15 bar / burst 20 bar
By pass standard 1 bar ( suction 0.2 bar )
Max. Temp. 80 ° c.
For use with mineral / petroleum based oils

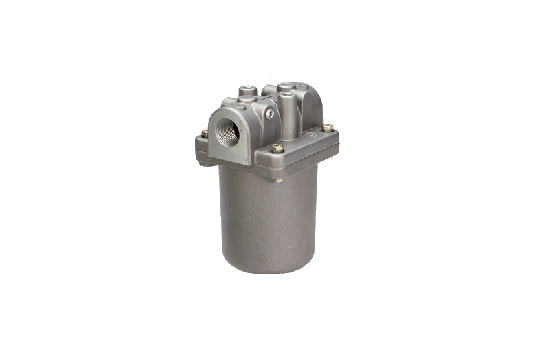

TIF2

Direct tank mounting
Pressure – max. 10 bar / test 20 bar / burst 25 bar
All aluminium diecast construction
4 – sizes flows to 175 lpm
By pass standard 1 bar
Elements replaceable through cover
Suitable for mineral / petroleum based oils
Max temp. 80°c
