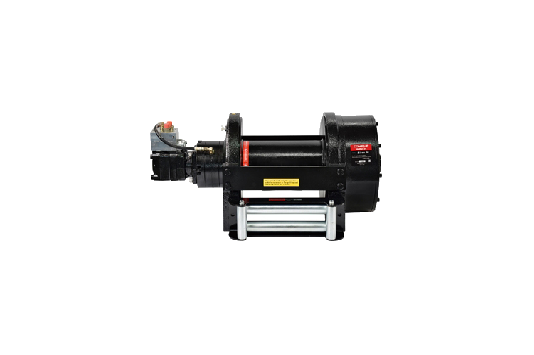

PN 682030 (Std. drum) / PN 682169 (Long drum)

9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)

7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)

175 bar / 2,540 psi

60 l/min (15.9 g/min)

155.7 cm3/rev (9.5 in3/rev)

2-stage planetary gear 30:1

Cast housings with steel drum

Output shaft disengaged

Multi-Disc Brake (MDB) patented and counterbalance valve supplied

Wire rope shall be under-wound orientation only

146 mm (5.8″)

314 mm (12.4”)

203 mm (8″) – Std. drum

355.6 mm (14″) – Long drum

190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum

190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mmc (10.5” x 18”) – Long drum

14 mm x 43 m (9/16” x 141’) – Std. drum

14 mm x 80 m (9/16” x 262’ ) – Long drum

1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN

(30,742 lbf) required for SAE J706 ratings

16 mm x 30 m (5/8” x 98’) – Std. drum

16 mm x 55 m (5/8” x 180’ ) – Long drum

1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN

(40,167 lbf) required for EN 14492-1 ratings

135 kg / 298 lb – Std. drum

150 kg / 331 lb – Long drum

165 kg / 364 lb – Std drum

195 kg / 430 lb – Long drum

870 x 500 x 510 mm (34.3″ x 19.7″ x 20.1″) – Std. drum

1,025 x 500 x 510 mm (40.4″ x 19.7″ x 20.1″) – Long drum

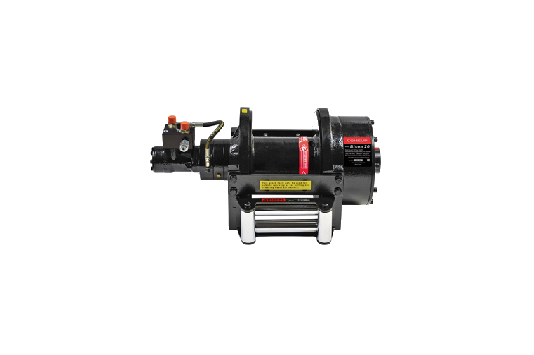

PN 683030 (Std. drum) / PN 683352 (Long drum)

13,600 kg / 30,000 lb (SAE J706 rating)

5 mpm at 60 l/min (16 fpm at 15.9 g/min)

175 bar / 2,540 psi

60 l/min (15.9 g/min)

155.7 cm3/rev (9.5 in3/rev)

2-stage planetary gear 41:1

Cast housings with steel drum

Output shaft disengaged

Multi-Disc Brake (MDB) patented and counterbalance valve supplied

Wire rope shall be under-wound orientation only

152.5 mm (6″)

343 mm (13.5”)

203 mm (8″) – Std. drum

355.6 mm (14″) – Long drum

190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum

190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mm (10.5” x 18”) – Long drum

16 mm x 43 m ( 5/8” x 141’) – Std. drum

16 mm x 75 m ( 5/8” x 246’ ) – Long drum

1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 ratings

175 kg / 386 lb – Std. drum

197 kg / 434 lb – Long drum

198 kg / 437 lb – Std drum

235 kg / 518 lb – Long drum

900 x 510 x 530 mm (35.4″ x 20.1″ x 20.9″) – Std. drum

1,040 x 620 x 510 mm (40.9″ x 24.4″ x 20.1″) – Long drum

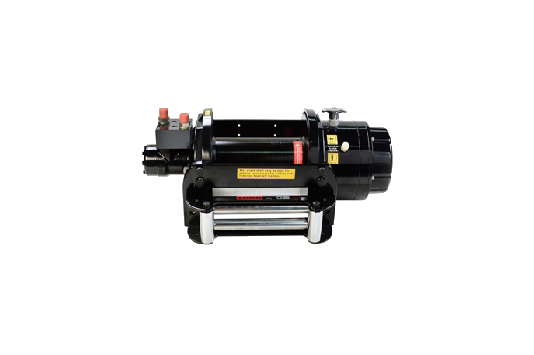

PN 685010 (Std. drum)

22,680 kg / 50,000 lb (SAE J706 rating)

5.7 mpm at 100 l/min (19 fpm at 26.5 g/min)

200 bar / 2,900 psi

100 l/min (26.5 g/min)

251.8 cm3/rev (15.4 in3/rev)

2-stage planetary gear 44:1

Cast housings with steel drum

Output shaft disengaged

Multi-Disc Brake (MDB) patented and counterbalance valve supplied

Wire rope shall be under-wound orientation only

180 mm (7.1″)

406 mm (16”)

368 mm (14.5″)

240 x 453 mm (13.4” x 17.8”) ; 340 x 453 mm (13.4” x 17.8″)

22.4 mm x 48 m (7/8” x 157’) 1,770 N/mm2 (EIPS) breaking strength of 305 kN (68,442 lbf) required for SAE J706 ratings

375 kg / 827 lb

410 kg / 904 lb

1,170 x 630 x 670 mm (46″ x 24.8″ x 26.4″)

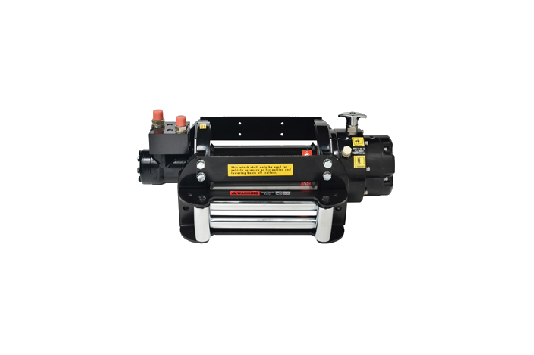

PN 682546 (Std. drum) / PN 683129 (Std. drum – Clutch in left side)

4,535 kg / 10,000 lb (SAE J706 rating)

4,300 kg (EN 14492-1 rating)

14 mpm at 60 l/min (46 fpm at 15.9 g/min)

150 bar / 2,175 psi

60 l/min (15.9 g/min)

97.3 cm3/rev (5.9 in3/rev)

2-stage planetary gear 16:1

Aluminum die cast housings with steel drum

Rotating ring gear

Spring applied drag brake together with over-center valve supplied

Wire rope shall be under-wound orientation only

102 mm (4″)

201.5 mm (7.9”)

253 mm (10″)

291.6 x 171.2 mm (11.5” x 6.7”)

374.2 x 114 mm (14.7” x 4.5”)

11 mm x 27 m (7/16″ x 89′), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings.

37 kg / 81.4 lb

46.6 kg / 102.5 lb

680 x 380 x 300 mm (26.8″ x 15″ x 11.8″)

Compliant with EN 14492-1 requirements for vehicle recovery winch:

* The working coefficient for the first rope layer on the drum shall be at least 2.

* The D/d ratio to the center of the rope shall be at least 10 for the drum.

* Drum freeboard shall be at least 1.5 x rope diameter

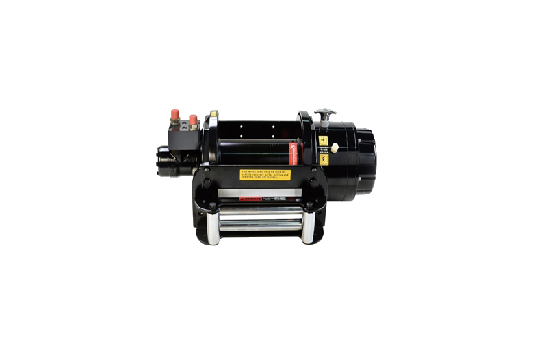

PN 684311 (Std. drum) / PN 685433 (Std. drum – Clutch in left side)

5,440 kg / 12,000 lb (SAE J706 rating)

5.100 kg (EN 14492-1 rating)

10 mpm at 60 l/min (33 fpm at 15.9 g/min))

150 bar / 2,175 psi

60 l/min (15.9 g/min)

125 cm3/rev (7.6 in3/rev)

2-stage planetary gear 19.4:1

Aluminum die cast housings with steel drum

Rotating ring gear

Spring applied drag brake together with over-center valve supplied

Wire rope shall be under-wound orientation only

114.3 mm (4.5″)

252 mm (9.9”)

255 mm (10″)

303.5 x 114.3 mm (12” x 4.5”)

368.5 x 171.2 mm (14.5” x 6.7”)

12 mm x 39 m (1/2″ x 128′), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 100.5 kN (22,552 lbf) required for SAE J706 and EN 14492-1 ratings

71 kg / 156.5 lb

87 kg / 191.8 lb

735 x 430 x 335 mm (29″ x 16.9″ x 13.2″)

Compliant with EN 14492-1 requirements for vehicle recovery winch:

* The working coefficient for the first rope layer on the drum shall be at least 2.

* The D/d ratio to the center of the rope shall be at least 10 for the drum.

* Drum freeboard shall be at least 1.5 x rope diameter

PN 686732 (Std. drum) / PN 687548 (Std. drum – Clutch in left side)

6,800 kg / 15,000 lb (EN 14492-1 rating & SAE J706 rating)

9 mpm at 60 l/min (30 fpm at 15.9 g/min)

150 bar / 2,175 psi

60 l/min (15.9 g/min)

156 cm3/rev (9.5 in3/rev)

2-stage planetary gear 19.4:1

Aluminum die cast housings with steel drum

Rotating ring gear

Spring applied drag brake together with over-center valve supplied

Wire rope shall be under-wound orientation only

127 mm (5″)

252 mm (9.9”)

255 mm (10″)

303.5 x 114.3 mm (12” x 4.5”)

368.5 x 171.2 mm (14.5” x 6.7”)

14 mm x 27 m (9/16″ x 89′) 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 and EN 14492-1 ratings

72 kg / 158.7 lb

88 kg / 194 lb

735 x 430 x 335 mm (29″ x 16.9″ x 13.2″)

Compliant with EN 14492-1 requirements for vehicle recovery winch:

* The working coefficient for the first rope layer on the drum shall be at least

The D/d ratio to the center of the rope shall be at least 10 for the drum.

* Drum freeboard shall be at least 1.5 x rope diameter
