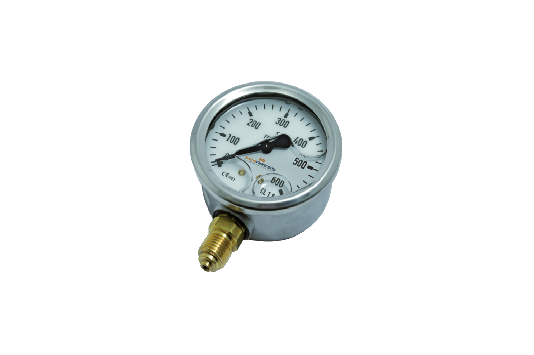

Stainless steel case, glycerine filled:

• For measuring external points with high dynamic pressure loads or vibrations
• For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
• Hydraulics, Pneumatics
• Compressors, shipbuilding

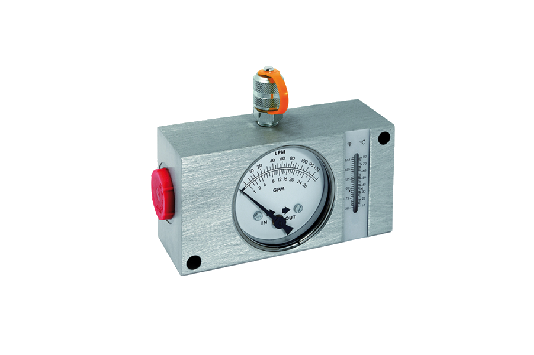

Flow indicators are designed for continuous monitoring or intermittent use commissioning.

The large clear 63 mm diameter dial ensure that quick checks can be made to determine pump performance and setting of flow control valves.

They can be used on mobile and industrial hydraulic circuits. Also lubrication and coolant system using oil/water.

These direct acting flow indicators can be installed in hazardous areas or on applications where no power is available.

Moreover it is possible to check the temperature by the thermometer and the pression by the predisposition for the connection with a 1/4″ G test coupling.

Flow Ranges 30Lpm- 600Lpm

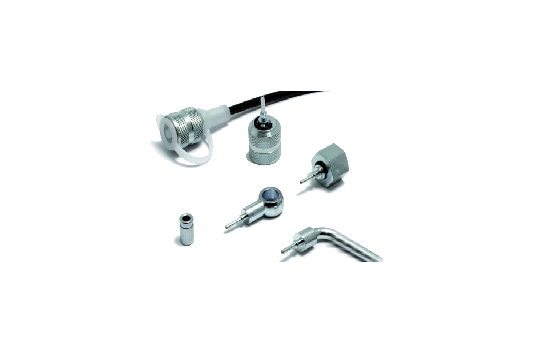

Application:

Hose for mineral and hydraulic oil, type ASTM 3, fuel,

brake systems oil (type DOT 4)

Material:

Thermoplastic Polyester

Materiale treccia: Aramidic Fibre

Ricopertura esterna: Antiabrasion polyurethane

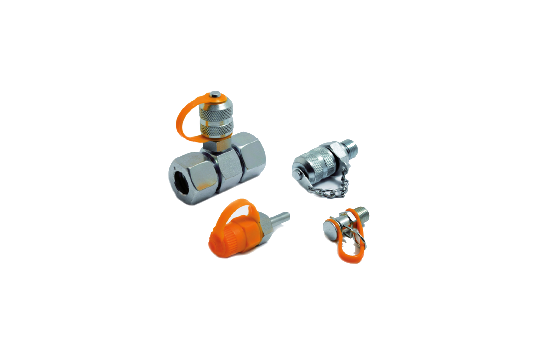

The diagnostic system developed by Mini Press guarantees at any time, place and condition, the immediate and manual pressure control inside the machine, without stopping its functioning up to 630 bar

Applications:

• Pressure control
• Lubrification
• Air bleeding
• Oil sampling
• Materials:


  Galvanised carbon steel




  (Stainless steel AISI316 is available on request)

• Sealing:


  NITRILE BUNA N (NBR)




  (FKM-viton is available on request)




  Working temperature:




  -30°C…+125°C (NITRILE)




  -25°C…+230°C (FKM)

• Fluids::
• hydraulic oils
  Mineral oils
  Suitability with other fluids on request
